E-COS 332 LED – Variant
Contact Us for Pricing

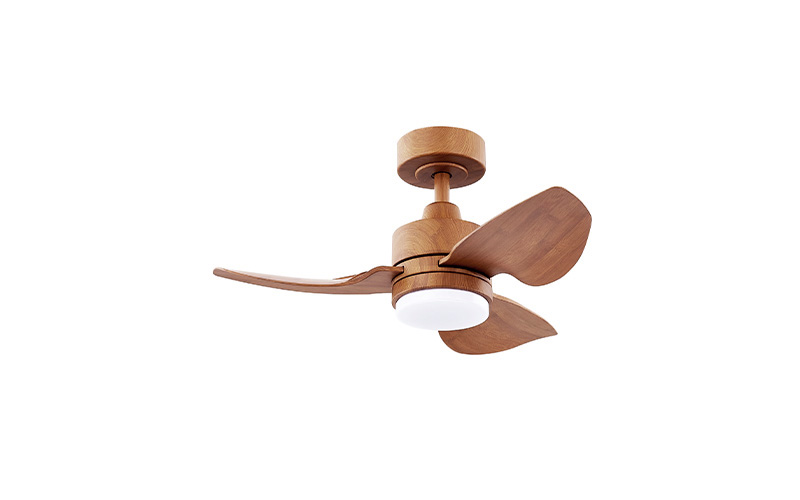

The E-COS 332 LED combines a 32″ 3-blade DC fan with natural wind mode and a dimmable 20W OSRAM LED light.
Key features of the E-COS DC ceiling fan
- 5-speed DC motor (120-300 rpm)
- 32″ span with 3 ABS blades
- 20W OSRAM dimmable LED, tri-colour Day/Cool/Warm
- Natural wind mode
- Reversible forward/reverse airflow with child lock
- Lifetime warranty on DC motor, 2 years on internal parts
Specifications
| Fan Motor | DC155 x 12 |
|---|---|
| Fan Size | 813mm (32″) |
| Blades | 3 ABS blades |
| Fan Speeds | 1 to 5 |
| Fan Speed Range | 120-300 rpm |
| Airflow | 3125-7025 cfm |
| Fan Wattage | 2.5W-15W |
| Voltage | 230V |
| Light Wattage | 2W-20W |
| Light Output | Day 2500 / Warm 2400 / Cool 2450 lumens |
| Light Function | Stepless dimmable 10%-100% |
| Net Weight | 5.3kg |
| Gross Weight | 6.2kg |
Natural wind mode and reversible airflow suit year-round comfort, while the dimmable tri-colour LED lets the light tone be matched to the room's use.
Enquire with us for current pricing, stock and project quotations — or browse more Fans.
Key Features
💬 Need project quotation? WhatsApp us for a free consultation and quotation.
Quality Assured
Expert Advice
Fast Response
Product Description
Fan MotorDC155 x 12
Fan Size813mm (32″)
Number Of Blades / Material3 blades / ABS
Number Of Fan Speeds1 to 5
Fan (rpm)120 – 300
Wind Speed (m/s)1.47 – 3.32
Airflow (cfm)3125 – 7025
Efficiency Cfm Per Watt468.3 at Highest Speed
Fan Wattage2.5W – 15W
Fan Voltage230V
Light Wattage2W – 20W
Light Luminous FluxLUMENS (DAY-2500, WARM-2400, COOL-2450)
Light FunctionStepless Dimmable from 10% – 100% (Hold 5 secs)
Auto One Touch Dimmable 10% To 100% (3 Secs)
Remote ControlIncluded
Natural Wind FunctionYes
Forward/reverse Airflow FunctionYes (Hold 3 secs to activate – Child Lock protected)
Box Dimension (l × W × H)526mm x 286mm x 217mm
Nett Weight5.3kg
Gross Weight6.2kg
