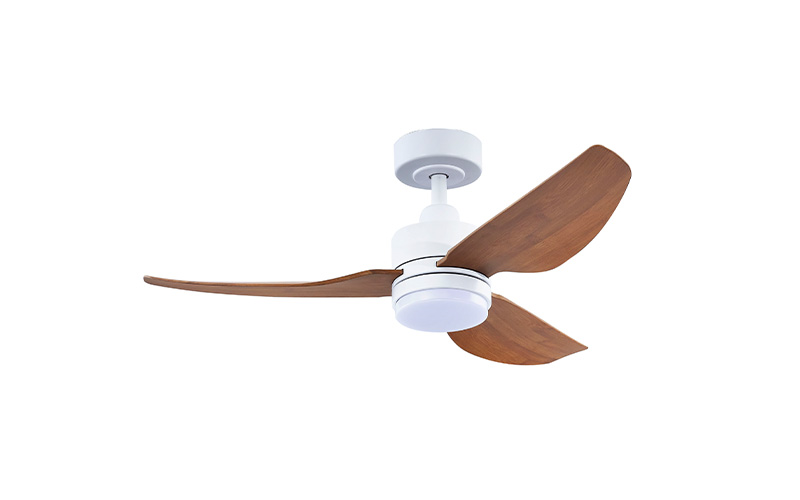

E-COM 342 LED – White 2
Contact Us for Pricing
The E-COM 342 LED is a 42-inch DC ceiling fan built around a DC155 x 12 motor and 3 ABS blades, with an integrated 20W OSRAM dimmable tri-colour LED.
Key features of the 42-inch DC LED fan
- DC155 x 12 motor with 3 ABS blades, 1067mm (42") sweep
- 5 fan speeds, 110-280rpm, airflow 4150-12095 cfm
- 20W OSRAM dimmable tri-colour LED (Day/Cool/Warm)
- Stepless dimming 10%-100% and one-touch auto brightness control
- Wireless remote control with natural wind and reversible airflow functions
- Lifetime warranty on DC motor, 2 years on internal parts
Specifications
| Fan Motor | DC155 x 12 |
|---|---|
| Fan Size | 1067mm (42") |
| Blades | 3 blades / ABS |
| Fan Speeds | 1 to 5 |
| Fan Speed Range | 110 – 280 rpm |
| Wind Speed | 1.96 – 5.71 m/s |
| Airflow | 4150 – 12095 cfm |
| Efficiency | 525.9 cfm per watt at highest speed |
| Fan Wattage | 3.2W – 23W |
| Fan Voltage | 230V |
| Light Wattage | 2W – 20W |
| Light Function | Stepless dimmable 10%-100%, auto one-touch dimming |
| Box Dimensions | 526mm x 286mm x 217mm |
| Nett Weight | 5.5kg |
| Gross Weight | 6.4kg |
The tri-colour LED and stepless dimming provide adjustable ambient lighting, while the 5-speed DC motor suits both gentle and high-airflow needs.
Enquire with us for current pricing, stock and project quotations — or browse more Fans.
Key Features
💬 Need project quotation? WhatsApp us for a free consultation and quotation.
Quality Assured
Expert Advice
Fast Response
Product Description
Fan MotorDC155 x 12
Fan Size1067mm (42″)
Number Of Blades / Material3 blades / ABS
Number Of Fan Speeds1 to 5
Fan (rpm)110 – 280
Wind Speed (m/s)1.96 – 5.71
Airflow (cfm)4150 – 12095
Efficiency Cfm Per Watt525.9 at Highest Speed
Fan Wattage3.2W – 23W
Fan Voltage230V
Light Wattage2W – 20W
Light Luminous FluxLUMENS (DAY-2500, WARM-2400, COOL-2450)
Light FunctionStepless Dimmable from 10% – 100% (Hold 5 secs)
Auto One Touch Dimmable 10% To 100% (3 Secs)
Remote ControlIncluded
Natural Wind FunctionYes
Forward/reverse Airflow FunctionYes (Hold 3 secs to activate – Child Lock protected)
Box Dimension (l × W × H)526mm x 286mm x 217mm
Nett Weight5.5kg
Gross Weight6.4kg
