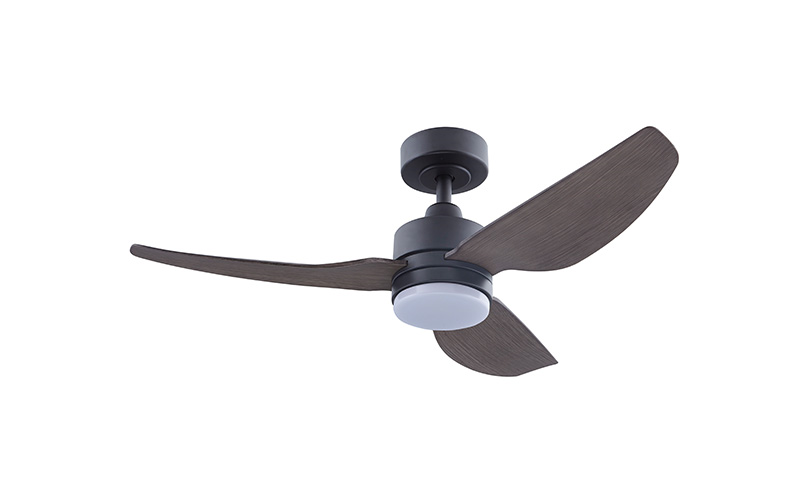

E-COM 342 LED – Black / Dark Wood
Contact Us for Pricing
The E-COM 342 LED DC ceiling fan spans 42″ across 3 ABS blades, delivering up to 12095 cfm airflow with a dimmable OSRAM LED.
Key features of the E-COM DC ceiling fan
- 5-speed DC motor (110-280 rpm)
- 42″ span with 3 ABS blades
- 20W OSRAM dimmable LED, tri-colour Day/Cool/Warm
- Natural wind mode
- Reversible forward/reverse airflow with child lock
- Lifetime warranty on DC motor, 2 years on internal parts
Specifications
| Fan Motor | DC155 x 12 |
|---|---|
| Fan Size | 1067mm (42″) |
| Blades | 3 ABS blades |
| Fan Speeds | 1 to 5 |
| Fan Speed Range | 110-280 rpm |
| Airflow | 4150-12095 cfm |
| Fan Wattage | 3.2W-23W |
| Voltage | 230V |
| Light Wattage | 2W-20W |
| Light Output | Day 2500 / Warm 2400 / Cool 2450 lumens |
| Light Function | Stepless dimmable 10%-100% |
| Net Weight | 5.5kg |
| Gross Weight | 6.4kg |
The strong airflow output suits bigger rooms or living areas, while the dimmable tri-colour LED allows the light tone to be matched to the room's use.
Enquire with us for current pricing, stock and project quotations — or browse more Fans.
Key Features
💬 Need project quotation? WhatsApp us for a free consultation and quotation.
Quality Assured
Expert Advice
Fast Response
Product Description
Fan MotorDC155 x 12
Fan Size1067mm (42″)
Number Of Blades / Material3 blades / ABS
Number Of Fan Speeds1 to 5
Fan (rpm)110 – 280
Wind Speed (m/s)1.96 – 5.71
Airflow (cfm)4150 – 12095
Efficiency Cfm Per Watt525.9 at Highest Speed
Fan Wattage3.2W – 23W
Fan Voltage230V
Light Wattage2W – 20W
Light Luminous FluxLUMENS (DAY-2500, WARM-2400, COOL-2450)
Light FunctionStepless Dimmable from 10% – 100% (Hold 5 secs)
Auto One Touch Dimmable 10% To 100% (3 Secs)
Remote ControlIncluded
Natural Wind FunctionYes
Forward/reverse Airflow FunctionYes (Hold 3 secs to activate – Child Lock protected)
Box Dimension (l × W × H)526mm x 286mm x 217mm
Nett Weight5.5kg
Gross Weight6.4kg
