E-COL 352 LED – White
Contact Us for Pricing

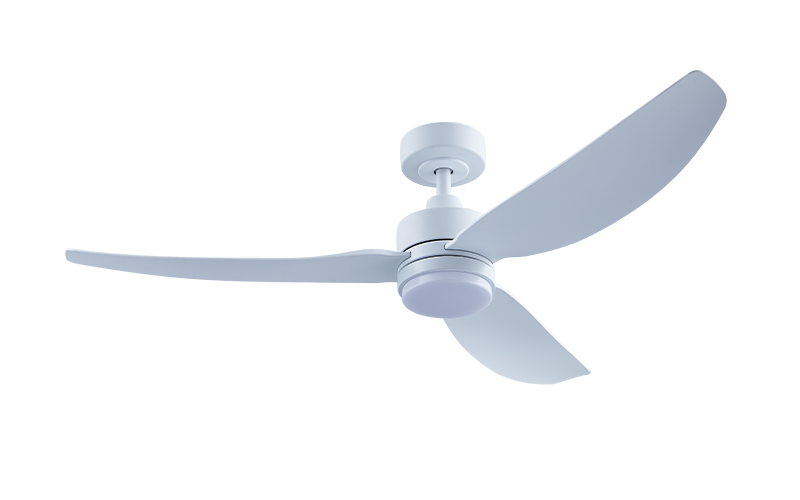

The E-COL 352 LED is a 52-inch DC ceiling fan fitted with a 20W OSRAM dimmable tri-colour LED, driven by a DC155 x 16 motor and 3 ABS blades across 5 speeds.
Key features of the 52-inch DC LED fan
- DC155 x 16 motor with 3 ABS blades, 1321mm (52") sweep
- 5 fan speeds, 100-260rpm, airflow 5330-13830 cfm
- 20W OSRAM dimmable tri-colour LED (Day/Cool/Warm)
- Stepless dimming 10%-100% and one-touch auto brightness control
- Wireless remote control with natural wind and reversible airflow functions
- Lifetime warranty on DC motor, 2 years on internal parts
Specifications
| Fan Motor | DC155 x 16 |
|---|---|
| Fan Size | 1321mm (52") |
| Blades | 3 blades / ABS |
| Fan Speeds | 1 to 5 |
| Fan Speed Range | 100 – 260 rpm |
| Wind Speed | 2.52 – 6.53 m/s |
| Airflow | 5330 – 13830 cfm |
| Efficiency | 345.8 cfm per watt at highest speed |
| Fan Wattage | 4W – 40W |
| Fan Voltage | 230V |
| Light Wattage | 2W – 20W |
| Light Function | Stepless dimmable 10%-100%, auto one-touch dimming |
| Box Dimensions | 666mm x 286mm x 220mm |
| Nett Weight | 6.2kg |
| Gross Weight | 7.2kg |
The wide airflow range from 5330-13830 cfm covers both gentle and high-speed cooling for larger rooms.
Enquire with us for current pricing, stock and project quotations — or browse more Fans.
Key Features
💬 Need project quotation? WhatsApp us for a free consultation and quotation.
Quality Assured
Expert Advice
Fast Response
Product Description
Fan MotorDC155 x 16
Fan Size1321mm (52″)
Number Of Blades / Material3 blades / ABS
Number Of Fan Speeds1 to 5
Fan (rpm)100 – 260
Wind Speed (m/s)2.52 – 6.53
Airflow (cfm)5330 – 13830
Efficiency Cfm Per Watt345.8 at Highest Speed
Fan Wattage4W – 40W
Fan Voltage230V
Light Wattage2W – 20W
Light Luminous FluxLUMENS (DAY-2500, WARM-2400, COOL-2450)
Light FunctionStepless Dimmable from 10% – 100% (Hold 5 secs)
Auto One Touch Dimmable 10% To 100% (3 Secs)
Remote ControlIncluded
Natural Wind FunctionYes
Forward/reverse Airflow FunctionYes (Hold 3 secs to activate – Child Lock protected)
Box Dimension (l × W × H)666mm x 286mm x 220mm
Nett Weight6.2kg
Gross Weight7.2kg
